Description
| Items | Parameters | Messurement Unit | |
| Rated Working Pressure | 0.6-0.8 | MPa | |
| Rated Full Force | 50 | KN | |
| Rated Cable Speed | 12 | m/min | |
|

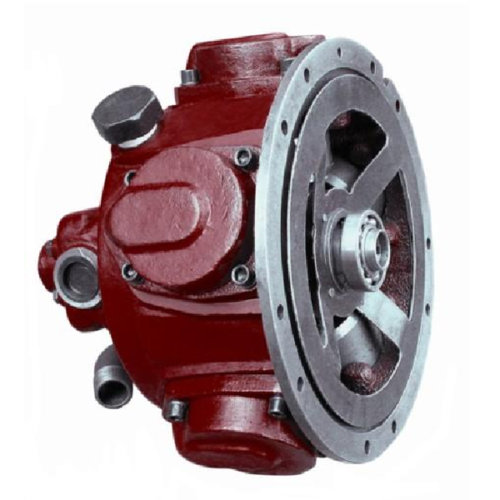

Piston Air Motor |
Model | TMH17 | — |
| Rated Power | 17 | KW | |
| Air Consumption | 247 | L/s | |
|
Drum |
Diameter | 222 | mm |
| Width | 335 | mm | |
| Wheel Rim Diameter | 465 | mm | |
| Cable Diameter | 15.875 | mm | |
| Cable Storage | 120 | m | |
| Air Inlet Diameter | 1 1/4 | inch | |
| Configuration ( Length* Width* Height) ) | 1200mm*920mm*989mm | ||
| Weight | 498 | KG | |
| Connection Type | T-threaded Type, Flange Type, Pin Type | ||
| Brake Type | Hand Brake and Foot Brake | ||
