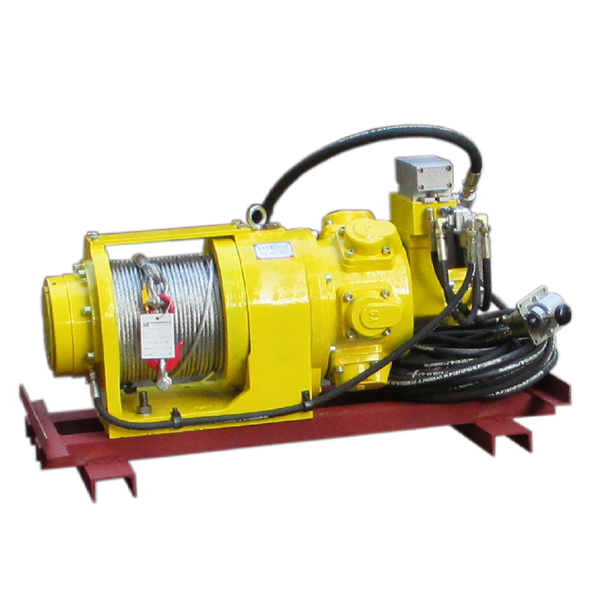

Remote Control Pneumatic Winch 10×24

////Remote Control Pneumatic Winch 10×24

Remote Control Pneumatic Winch 10×24

Category:

Description

Items Parameters Messurement Unit
Rated Working Pressure 0.6-0.7 MPa
Rated Full Force 10 KN
Rated Cable Speed 24 m/min


Piston Air Motor

Model TMH4A
Rated Power 4 KW
Air Consumption 130 L/s


Drum

Diameter 175 mm
Width 198 mm
Wheel Rim Diameter 290 mm
Cable Diameter 8 mm
Cable Storage 120 m
Air Inlet Diameter 3/4 inch
Brake Type Auto-brake
Configuration ( Length* Width* Height) ) 857mm*342mm*440mm
Weight 175 KG
Remote- control Distance 6-15m
