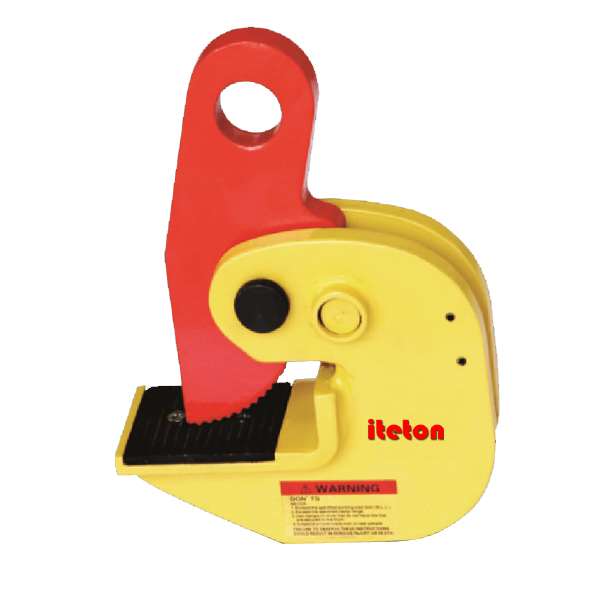

PPD horizontal plate clamp
Lifting and transporting steel plates, construction & profiled bar in horizontal position.
High quality carbon steel
WLL is the max. load that the clamps work in pairs with a lifting angle of 60°. Clamps can be used in pairs or multiples.
Screw jaw with safety button
| Model | WLL ton | Jaw opening mm | Weight kg |
| PPD0.8 | 0.8 | 0-25 | 2.5 |
| PPD1 | 1 | 0-30 | 3.5 |
| PPD1.6 | 1.6 | 0-30 | 4 |
| PPD2 | 2 | 0-40 | 5 |
| PPD3.2 | 3.2 | 0+45 | 6 |
| PPD4 | 4 | 0+50 | 6.5 |
| PPD5 | 5 | 0-55 | 7.5 |
| PPD6 | 6 | 0-65 | 10.5 |
| PPD6B | 6 | 0-130 | 22 |
| PPD8 | 8 | 0-100 | 22 |
| PPD10 | 10 | 0-125 | 33 |
| PPD16 | 16 | 50-150 | 50 |
| PPD30 | 30 | 100-270 | 108 |
