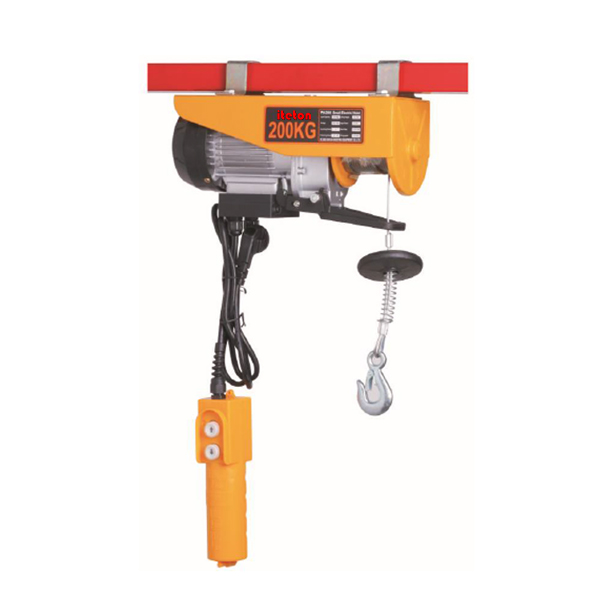

Mini Electric Hoist B Series

///Mini Electric Hoist B Series

Mini Electric Hoist B Series

Product advantages

80% spare parts self-manufactured, quality controlled

Electric motor is cooper wire motor, which has good electrical conductivity and insulativity

Best rubber wire rope and handle control can be anti-temperature, environmental and anti-aging

Production grade is IP40

Reduction box gear designed in high accuracy has lowered operating noise greatly

Spare parts in ABS plastic is anti-oil, anti-corrosion and safety,

Working grade:S3-25% -10min

Aircraft anti-rotation wire rope

Every hoist has passed overall test

More than 1000pcs daily output for prompt delivery

With upper limit position

Heat treated and forged hook with safety latch

Wireless remote control and hoist frame are optional

Description

Model Method of use Rated volt V Input power W Rated capacity kg Lifting speed m/min Lifting height m Qty/CTN pcs Packing size cm New weight kg Gross weight kg
PA200B single hook AC 110-230 V 50/60HZ 1phase 480 100 10 12 2 38*32*25 22 22.5
double hook 200 5 6
PA250B single hook 510 125 10 12 22 23
double hook 250 5 6
PA300B single hook 600 150 10 12 23 23.5
double hook 300 5 6
PA400B single hook 950 200 10 12 45*34*27 32 33
double hook 400 5 6
PA500B single hook 1020 250 10 12 32.5 33.5
double hook 500 5 6
PA600B single hook 1200 300 10 12 34 35
double hook 600 5 6
PA800B single hook 1300 400 8 12 37 38
double hook 800 4 6
PA1000B single hook 1600 500 8 12 1 54*25*32 31 32
double hook 1000 4 6
