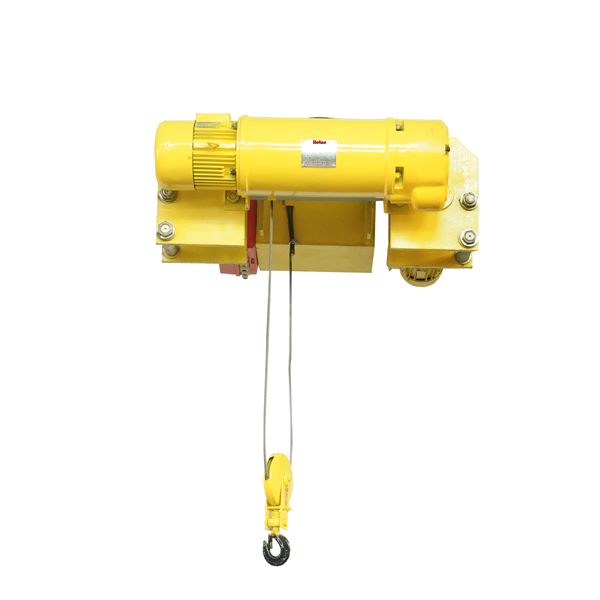

Low Headroom Electric Hoist 0.5 ton – 16 ton

///Low Headroom Electric Hoist 0.5 ton – 16 ton

Description

 Cap. t Lifting Height m Lifting

Speed m/min

Travelling speed m/min Wire Rope



Dia.of Wire Rope

(mm)

Lifting motor Volt. Running Motor
Type Power

(kw)

R.P.M r/min (A) Type Power

(kw)

R.P.M r/min

(A)

0.5 6-12 8

0.8/8

20/30 6×37

+FC

4.80 ZD121-4 0.8

0.2/0.8

1380 2.2

0.72/2.4

AC

380v

50hz

3ph

ZDY111-4 0.2 1380 0.72
ZDS1 0.2/0.8
1 6-30 8

0.8/8

20/30 6×37

+FC

7.40 ZD122-4 1.5

0.2/1.5

1380 4.3

0.72/4.3

ZDY111-4 0.2 1380 0.72
ZDS1 0.2/1.5
2 6-30 8

0.8/8

20/30 6×37

+FC

11.00 ZD131-4 3.0

0.4/3.0

1380 7.6

1.25/7.6

ZDY112-4 0.4 1380 1.25
ZDS1 0.4/3.0
3 6-30 8

0.8/8

20/30 6×37

+FC

13.00 ZD132-4 4.5

0.4/4.5

1380 11

2.4/11

ZDY112-4 0.4 1380 1.25
ZDS1 0.4/4.5
5 6-30 8

0.8/8

20/30 6×37

+FC

15.00 ZD141-4 7.5

0.8/7.5

1400 18

2.4/18

ZDY121-4 0.8 1380 2.4
ZDS1 0.8/7.5
10 9-30 7

0.7/7

20/30 6×37

+FC

15.00 ZD151-4 13

1.5/13

1400 30

5.2/30

ZDY121-4 0.8X2 1380 2.4
ZDS1 1.5/13
16 9-30 3.5

0.35/3.5

18 6×37

+FC

17.50 ZD151-4 13

1.5/13

1400 30

5.2/30

ZDY121-4 0.8X2 1380 2.4
ZDS1 1.5/13
