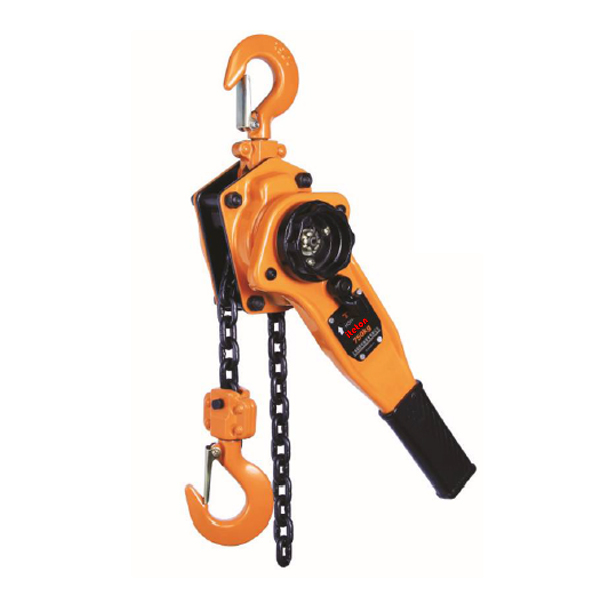

ITE-LA lever hoist
360 degree handling rotation with stroke to ratchet indicators
Forged and heat-treated load hooks with safety latch
Double pawl brake system
Premium alloy steel grade 80 load chain, Zinc plate, black oxidation are optional
Sealed needle bearing, low handle force and more efficient
Standard EN13157-2004
Widely used in nuclear power station, thermal power station etc.
| Model | ITA-LA0.75 | ITA-LA1.5 | ITA-LA3 | ITA-LA6 | ITA-LA9 | |
| Rated Capacity | ton | 0.75 | 1.5 | 3 | 6 | 9 |
| Test Load | kg | 950 | 1870 | 3750 | 750 | 11250 |
| Standard Lifting Height | m | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Hmin | mm | 310 | 385 | 460 | 600 | 860 |
| Force Of Full Load | N | 25 | 310 | 410 | 420 | 420 |
| Load Chain Dia. | mm | 6 | 8 | 10 | 10 | 10 |
| Net Weight | kg | 6.4 | 11.5 | 20.3 | 30.5 | 49.8 |
| Gross Weight | kg | 6.7 | 11.8 | 20.8 | 31.5 | 51.8 |
| a | 149 | 171 | 204 | 204 | 204 | |
| b | 89 | 102 | 114 | 114 | 114 | |
| c | 128 | 145 | 203 | 243 | 340 | |
| Φ | 37 | 45 | 55 | 85 | 75 | |
| e | 29 | 35 | 44 | 50 | 54 |
