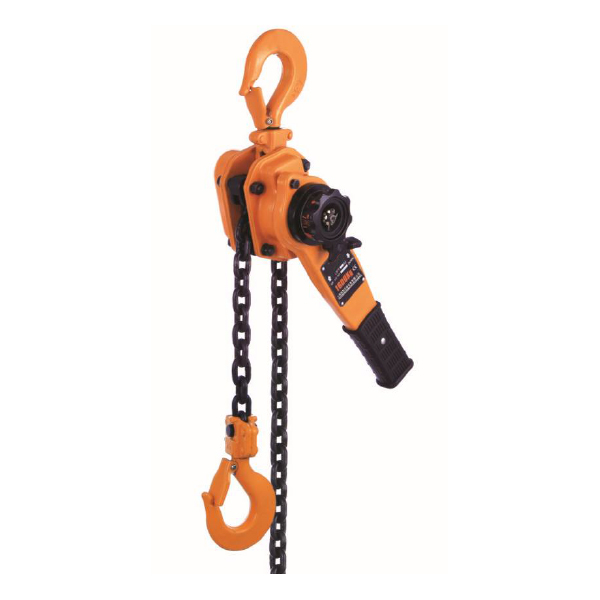

ITA-LC LEVER HOIST
Compact design for lightweight portability
Integrally molded chain wheel is durability
Forged and heat-treated load hooks with safety latch
Double pawl brake system
T grade carburizing load chain
Sealed needle bearing, low handle force and more efficient
Heat-treated split load double reduction alloy gears
Test load is 125% of rated load.
| Model | ITA-LC0.8 | ITA-LC1.6 | ITA-LC3.2 | ITA-LC6.3 | ITA-LC9 | |
| Rated Capacity | ton | 0.8 | 1.6 | 3.2 | 6.3 | 9 |
| Test Load | kg | 1200 | 2400 | 4800 | 7900 | 11300 |
| Standard Lifting Height | mm | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| No.of Load Chain | 1 | 1 | 1 | 2 | 2 | |
| Load Chain Dia. | mm | 5.6 | 7.1 | 10 | 10 | 10 |
| Force Of Full Load N | N | 284 | 333 | 363 | 372 | 382 |
| Net Weight | kg | 5.7 | 8 | 15 | 26 | 40 |
| Gross Weight | kg | 6 | 8.3 | 16 | 27 | 42 |
| a | mm | 144 | 159 | 19 | 190 | 190 |
| b | 119 | 126 | 159 | 217 | 304 | |
| c | 280 | 335 | 395 | 540 | 680 | |
| d | 245 | 265 | 415 | 415 | 415 | |
| e | 97 | 100 | 112 | 112 | 112 | |
| g | 23.5 | 32 | 39 | 50 | 72.5 | |
| s | 35.5 | 42.5 | 50 | 60 | 85 | |
| t | 14 | 19 | 24.5 | 34 | 41.5 |
