Super alloy steel-quenched and tempered
Individually proof test at 2.5 times WLL
Breakage test and fatigue test
100% magnaflux crack detection
Surface finish: powder plastified
Color code: Red / Yellow
Suitable for 1 or 2 legs G80 chain sling
Welded or Forged
Ultimate lload is 4 times the WLL.
WLL is based on 0°-45°
Length and width is bigger
European Type G80 487 Master Link
Description

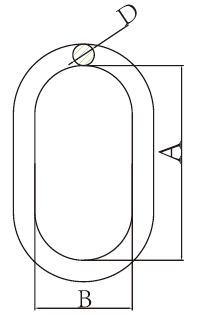

| Code | WLL ton | G80 EN818-2 chain 1 leg | G80 EN818-2 chain 2 leg | Weight kg | A | B | D |
| 487-87 | 2.7 | 8 | 7 | 0.38 | 120 | 70 | 13 |
| 487-108 | 3.5 | 10 | 8 | 0.67 | 140 | 80 | 16 |
| 487-1310 | 5.5 | 13 | 10 | 1.2 | 160 | 95 | 20 |
| 487-1613 | 9.4 | 16 | 13 | 2.45 | 190 | 110 | 26 |
| 487-1816 | 14.2 | 20 | 16 | 4.48 | 30 | 130 | 32 |
| 487-2220 | 22.3 | 22 | 20 | 7.5 | 275 | 150 | 38 |
| 487-2622 | 33.5 | 26 | 22 | 12.8 | 340 | 180 | 45 |
| 487-3226 | 40.8 | 32 | 26 | 16.55 | 50 | 190 | 50 |
| 487-3632 | 56.8 | 36 | 32 | 23.28 | 400 | 200 | 56 |
