European Type G80 Master Link Assembly

European Type G80 32 Master Link Assembly

Standard: EN1677-4( DIN5688-3)
Super alloy steel-quenched and tempered
Individually proof test at 2.5 times WLL
Breakage test and fatigue test
100% magnaflux crack detection
Surface finish: powder plastified
Color code: Red / Yellow
Suitable for 3 or 4 legs G80 chain sling as per EN818-4
Welded or Forged
Ultimate lload is 4 times the WLL.
WLL is based on 0°-45°

Category: Master Links Tags: European Type G80 Master Link Assembly, European Type G80 Master Link Assembly 10mm, European Type G80 Master Link Assembly 13mm, European Type G80 Master Link Assembly 16mm, European Type G80 Master Link Assembly 18mm, European Type G80 Master Link Assembly 20mm

Description
Reviews (0)

Description

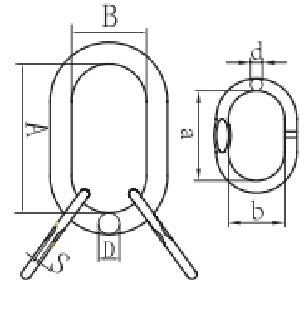

Code	WLL ton	G80 EN818-2 Chain 3 or 4 legs sling	Weight kg	A	B	D	a	b	d
32-6	2.36	6	1.18	135	75	18	54	25	13
32-7	3.15	7	1.24	135	75	18	60	38	13
32-8	4.25	8	2.2	60	90	22	70	34	16
32-10	6.7	10	3.4	180	100	26	85	40	18
32-13	11.2	13	6.1	200	110	32	115	50	22
32-16	17	16	9.98	260	140	36	140	65	26
32-18	21.2	18	18.9	340	180	45	180	100	32
32-20	26.5	20	22.6	350	190	50	180	100	32
32-22	31.5	22	25.2	350	190	50	180	100	36
32-26	45	26	35.2	400	200	56	180	100	40
32-28	50	28	48	430	220	63	180	100	45
32-32	63	32	66.46	460	250	72	200	110	50
