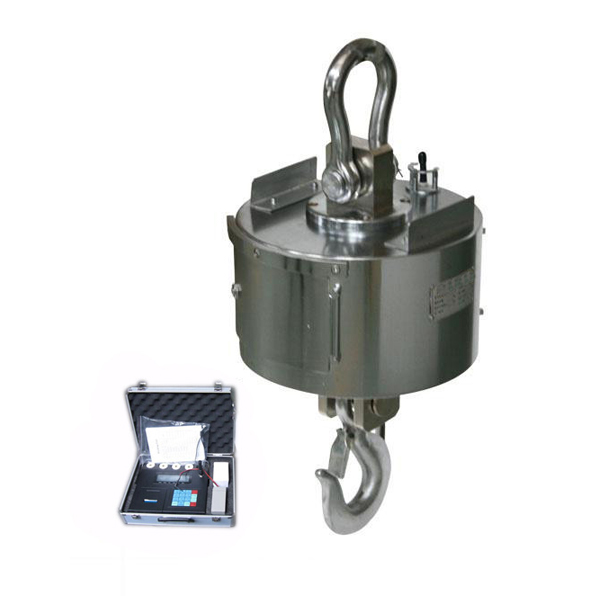

Crane scale with printer D5-1t~30t
Range up to 30 ton
Crane scale with printer D5-1t~30t
Description
| Capacity ton | Length mm | Ring weight mm | Ring height mm | Lifting hook mm | Round shell height mm | Dia. Mm | Weight kg G5 | Weight kg D5 | Weight kg D5H |
| 1 | 560 | 95 | 58 | 25 | 140 | 265 | 34 | 38 | 44 |
| 2 | 560 | 95 | 58 | 25 | 140 | 265 | 34 | 38 | 44 |
| 3 | 560 | 95 | 58 | 25 | 140 | 265 | 34 | 38 | 44 |
| 5 | 820 | 120 | 80 | 45 | 190 | 320 | 49 | 53 | 60 |
| 10 | 940 | 125 | 90 | 55 | 190 | 320 | 59 | 63 | 71 |
| 15 | 1000 | 135 | 98 | 60 | 190 | 320 | 68.5 | 72.5 | 85 |
| 20 | 1100 | 235 | 127 | 75 | 190 | 320 | 91.5 | 92.5 | 107 |
| 30 | 1290 | 280 | 145 | 90 | 190 | 345 | 132 | 136 | 147 |
| 50 | 1645 | 290 | 210 | 160 | 296 | 510 | 325 | 330 | 360 |
