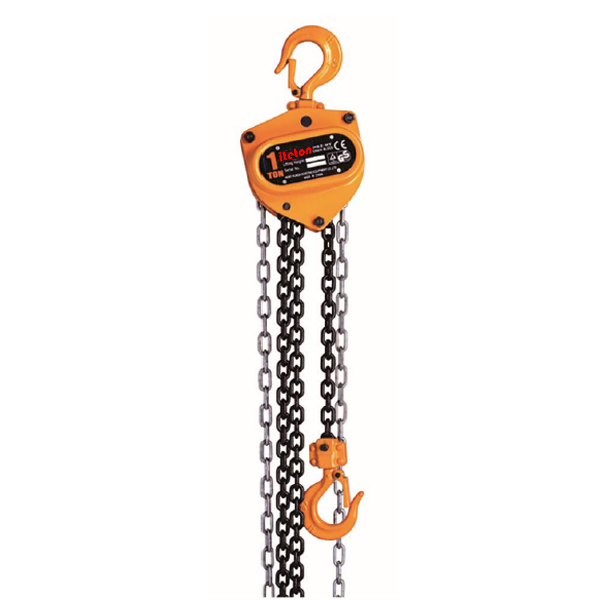

HY chain block
Independent intellectual properly right
Compact design and lightweight
Forged and heat-treated load hooks with safety latch
Unique hand wheel cover provides smooth operations
Double pawl mechanism enhances safety and reliability
CE standard
Capacity from 1 ton up to 50 ton
Overload protection device for optional
| Capacity ton | Lifting height m | Test Load t | No.of load chain | Chain dia. Mm | Force of full load N | Net Weight kg | a | b | c | d | Hmin |
| 1 | 3 | 1.25 | 1 | 6×18 | 315 | 11.3 | 160 | 129 | 30 | 42 | 330 |
| 2 | 3 | 2.5 | 2 | 6×18 | 340 | 17.7 | 190 | 129 | 31 | 52 | 450 |
| 2 | 3 | 2.5 | 1 | 8×24 | 400 | 14.1 | 190 | 146 | 31 | 52 | 490 |
| 3 | 3 | 3.75 | 2 | 8×24 | 394 | 22.5 | 225 | 146 | 32 | 50 | 525 |
| 5 | 3 | 6.75 | 2 | 10×30 | 424 | 37.25 | 257 | 171 | 43 | 68 | 620 |
