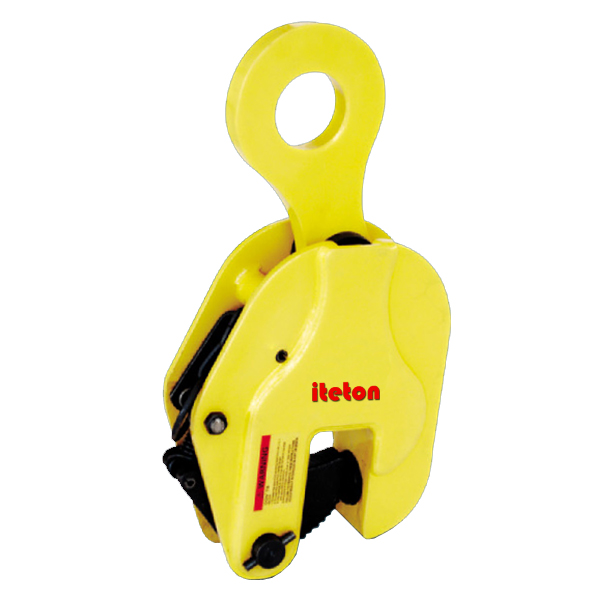

CDH Vertical plate clamp

///CDH Vertical plate clamp

CDH Vertical plate clamp

CDH Vertical plate clamp

Designed for vertical lifting of steel plates and steel structures. The spring-loaded tightening lock mechanism ensure a positive initial clamping force.

Equipped with a safety mechanism, no slipping when lowering

Locked in closed as well as in open position

High-frequency quenching of die-forged special alloy steels with nice performance.

Description

Model WLL ton Jaw opening mm Weight kg
CDH 0.8 0.8 0-16 2.8
CDH1 1 0-22 3.6
CDH2 2 0-30 5.5
CDH3.2 3.2 0-40 10
CDH5 5 0-50 17
CDH8 8 0-60 26
CDH10 10 0-80 32
CDH12 12 0-90 48
CDH16 16 60-125 80
CDH30 30 80-220 125
