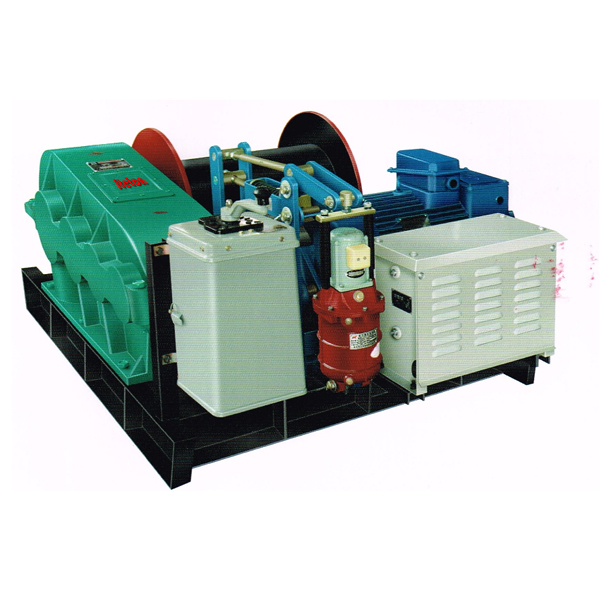

6 Ton Electric Winch
Model: JM
6 Ton Electric Winch
Model: JM
Model | Rate Capacity ton | Rated Speed m/min | Wire Rope Capacity m | Wire Rope | Wire Rope Dia.mm | Drum Center Height mm | Motor Model | Moter Power kw | Brake Model | Size mm | Weight kg |
JM 6 | 6 | 10 | 250 | 6*37 | 24 | 425 | YZR180L-6 | 15 | YWZ-300/45 | 1690*1420*750 | 1450 |
JM 8 | 8 | 9 | 280 | 6*37 | 26 | 470 | YZR180L-6 | 15 | YWZ-300/45 | 1780*1600*770 | 2000 |
JM 10 | 10 | 9 | 300 | 6*37 | 30 | 530 | YZR200-6 | 22 | YWZ-300/45 | 2000*1730*955 | 2500 |
JM 12 | 12 | 9 | 300 | 6*37 | 32 | 550 | YZR200-6 | 22 | YWZ-400/45 | 2100*1745*995 | 3000 |
JM 16 | 16 | 9 | 400 | 6*37 | 39 | 760 | YZR225M-6 | 30 | YWZ-400/45 | 2720*2265*1310 | 5200 |
