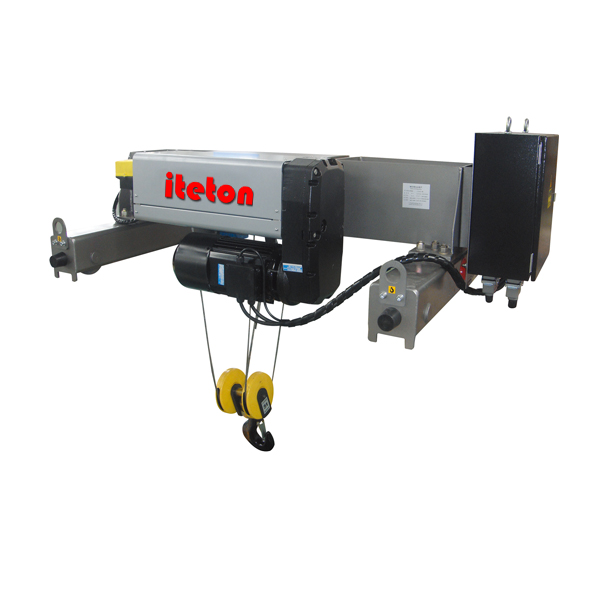

5 ton Electric Hoist with Double Girder Crab

///5 ton Electric Hoist with Double Girder Crab

5 ton Electric Hoist with Double Girder Crab

Model : ITE-DGEH

  1. Traveling motor: NORD brand / Optinonal China Brand
  2. Lifting motor & reducer: ABM / Optional China Brand
  3. Inverter: YASKAWA / Optional China Brand
  4. Contactor: Schneider
  5. Terminal: Phoenix
  6. Speed: Lifting and traveling with inverter( variable speed)
  7. Overload limiter included
  8. FEM/ISO: 2M/M5
  9. Low noise
  10. High work efficiency
Category:

Description

Capacity  kg Lifting height m Lifting speed m/min Lifting power  kw Traveling speed m/min Traveling power     kw Lifting working system FEM/ISO Traveling working system FEM/ISO H(mm) C(mm) Smin
(mm)		 Weight   kg
3200 6 5/0.8 3.2/0.45 5/20 0.25*2 2M/M5 2M/M5 500 420 1000 620
9 5/0.8 3.2/0.45 5/20 0.25*2 2M/M5 2M/M5 500 420 1000 700
12 5/0.8 3.2/0.45 5/20 0.25*2 2M/M5 2M/M5 500 420 1400 780
15 5/0.8 3.2/0.45 5/20 0.25*2 2M/M5 2M/M5 500 420 1400 860
18 5/0.8 3.2/0.45 5/20 0.25*2 2M/M5 2M/M5 500 420 1700 940
5000 6 5/0.8 6.1/1 5/20 0.37*2 2M/M5 2M/M5 520 425 1000 680
9 5/0.8 6.1/1 5/20 0.37*2 2M/M5 2M/M5 520 425 1000 760
12 5/0.8 6.1/1 5/20 0.37*2 2M/M5 2M/M5 520 425 1400 840
15 5/0.8 6.1/1 5/20 0.37*2 2M/M5 2M/M5 520 425 1400 920
18 5/0.8 6.1/1 5/20 0.37*2 2M/M5 2M/M5 520 425 1700 1000
