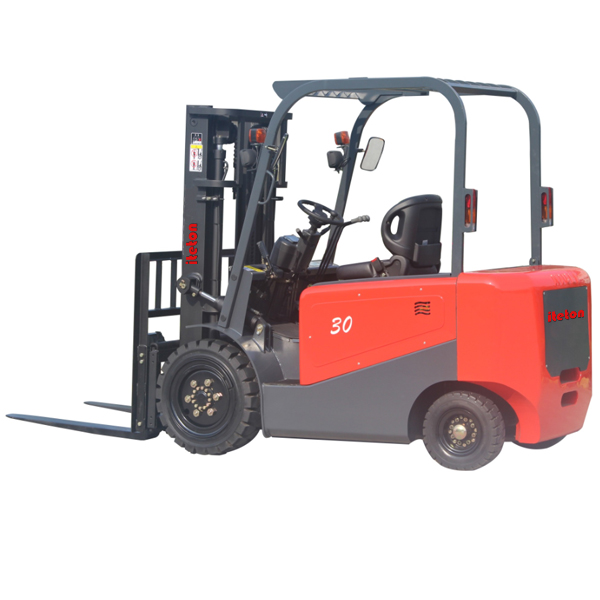

3 ton 3.5 ton electric forklift

Features –EF 30/35 3 ton 3.5 ton electric forklift

Power transmission system, overhead guard and truck frame all use dual suspension structure, which can weaken the vibration transferred from power system wheel, control lever and seat, thus making the operator feel more comfortable during operation

Master cylinder lowering with buffering system, shock absorber steering axle with low noise, all of seal kits imported from Japan (

NOK), transmission and working system have low noise.

With regenerative brake in reversing mode and regular brake pedal use, truck can be braked after foot leaving the pedal, reduce operator efforts and improve the brake life.

The optional of third safety pedal to reduce the driving speed while stacking and steering application

Wide view mast, clear visibility

Low height access step with wide steel non slip plate for easy entry and exit.

Cowl-mounted hydraulic levers design offers big operation space.

Adjustable tilt steering column offers the most comfortable operator position

Seat with safety belt and arm rest ( The optional of Grammar or suspension type)

High-friction brake shoes are fee of asbestos

With reverse mirror, front work light and back work light group.

Description
Reviews (0)

Description

	1.1	Model		EF30	EF35
Characteristics	1.2	Power		Electric	Electric
	1.3	Operation type		seat	seat
	1.4	Capacity / Rated load	Q kg	3000	3500
	1.5	Load centre distance	C mm	500	500
	1.6	Wheel base	y mm	1650	1650
Tyres	2.1	Self weight (with battery)	kg	5150	5350
	2.2	Axle loading, laden front	kg	7150	7750
		Axle loading, laden rear	kg	1000	1100
	2.3	Axle loading, unladen front	kg	2020	2150
		Axle loading, unladen rear	kg	3130	3200
	3.1	Tyres type		Pneumatic/solid
	3.2	Tyre size(front)	inch	28×9-15	28×9-15
	3.3	Tyre size(rear)	inch	18×7-8	18×7-8
	3.4	Tyres,number front/rear		2X/2	2X/2
	3.5	Tread(rear/front)	b10/b11 mm	1050/1000	1050/1000
Dimensions	4.1	Tilt of mast	α/β(^。）	6–12	6–12
	4.2	Standard lift height	h3 mm	3000	3000
	4.3	Free lift	h2 mm	120	120
	4.4	Overall length	11 mm	3640	3640
	4.5	Overall width	b1 mm	1250	1250
	4.6	Mast lowered height	h1 mm	2060	2060
	4.7	Mast extended height	h4 mm	4260	4260
	4.8	Height of overhead guard	h6 mm	2220	2220
	4.9	Fork dimensions	I/e/s mm	1070x125x45	1070x125x45
	4.10	Fork adjustment	b3 mm	250-1100	250-1100
	4.11	Traction pin height	mm	300	300
	4.12	Mast Grount clearence(laden/unladen)	mm	100/130	100/130
	4.13	Ground clearance, centre of wheel base(laden/unladen)	m2 mm	125/130	125/130
	4.14	Seat height	h7 mm	1100	1100
	4.15	Turning radius	Wa mm	2250	2250
	4.16	Internal radius	mm	100	100
	4.17	Aisel width of pallet 1000*1200 crossway	mm	4200	4200
Performance	5.1	Travel speed (laden/unladen)	km/h	10.8/10.5	11.0/11.0
	5.2	Lifting speed(laden/unladen)	m/s	310/380	300/380
	5.3	Lowering speed(laden/unladen)	m/s	＜600	＜600
	5.4	Max gradeability(laden/unladen)	%	10/15	10/15
Drive	6.1	Travel motor		XYQ-12-1EH	XYQ-12-1EH
	6.2	Travel motor power	kw	12	11
	6.3	Hydraulic motor		XYQD-14-2H	XYQD-12-2H
	6.4	Hydraulic motor power	kw	14	14
	6.5	Controller		UK SEVCON	UK SEVCON
	6.6	Turning control		Hydraulic	Hydraulic
	6.7	Travel control		MOSFET	MOSFET
	6.8	Lifting control		MOSFET	MOSFET
	6.9	Oil tank	L	≤40	≤40
Battery	7.1	Battery		80V/500Ah	80V/600Ah
	7.2	Battery weight	kg	1380	1580
	7.3	Battery dimensions(LWH)	mm	1115655760	1115655760
Others	8.1	Stopping braking		Manual/Mechanical	Manual/Mechanical
	8.2	Service braking		Feet/Hydraulic	Feet/Hydraulic
	8.3	Operation pressure	kPa	175	175
	8.4	Noise level (7.5m)	dB(A)	70	70
