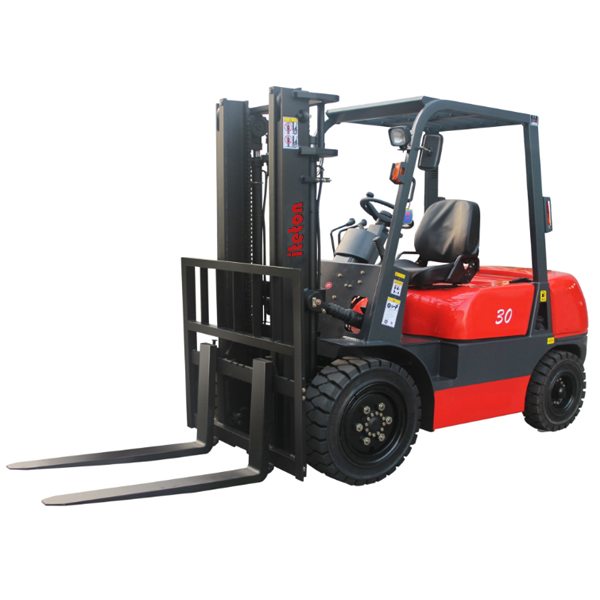

3 ton 3.5 ton diesel forklift

Features –DF 30/35 3 ton 3.5 ton diesel forklift

Power transmission system, overhead guard and truck frame all use dual suspension structure, which can weaken the vibration transferred from power system wheel, control lever and seat, thus making the operator feel more comfortable during operation

This forklift truck is designed with definition liquid crystal display device which not only provides convenience for operator to understand the working condition of truck, but also broadens the visual field of operator,.

This diesel forklift truck can be designed with two stage free lifting mast or three stage mast, luxurious and closed driving room, solid tire, side shifter, roll clamps, clamp holder and nonstandard forks etc. to meet your different needs.

Description

	1	Model			DF 30	DF35
General	2	Power type			Diesel	Diesel
	3	Rated capacity		kg	3000	3500
	4	Load centre		mm	500	500
Details	5	Lift height		mm	3000	3000
	6	Fork size	LxWxT	mm	1070x122x45	1070x122x45
	7	Mast tilt angle	F/R	Deg	6″/12″	6″/12″
	8	Front overhang( wheel center to fork face)		mm	500	500
	9	Ground clearance(bottom of mast)		mm	126	126
	10	Overall dimension	length of fork(with/without fork)	mm	3790/2700	3980/2890
	11		Overall width	mm	1230	1230
	12		Mast Lowered Height	mm	2105	2105
	13		Mast extended height(with backrest)	mm	4110	4110
	14		Overhead guard height	mm	2140	2140
	15	Turning radius(outside)		mm	2415	2640
	16	Min. intersection aisle		mm	2500	2700
Speed	17	Speed	Travel(full/empty load)	km/h	18/19	18/19
	18	Speed	Lifting(full/empty load)	mm/s	460/540	360/440
	19	Max. Gradeability		%	20	20
Chassis	20	Tire	Front		28×9-15-12PR	28×9-15-12PR
	21	Tire	Rear		6.50-10-10PR	6.50-10-10PR
	22	Wheelbase		mm	1650	1850
	23	Self weight		kg	4280	4500
Power & transmission	24	Battery	Voltage/capacity	V/Ah	12/120	12/120
	25	Engine	Model		C240/C490BPG	QC495G/4JG2
	26		Manufacturer		ISUZU/XinChang	QuanChai/ISUZU
	27		Rated output/r.p.m	Kw/r.p.m	34.3/2500 / 40/2650	42/2650 /44/2450
	28		Rated torque/r.p.m	Nw/r.p.m	137.7/1800 / 160/1800-2000	174/1980 / 186/1600-1800
	29		No.of cylinder		4	4
	30		bore x stroke	mm	18120 / 90105	95105/95.4107
	31		Displacement	cc	2369/2670	2980/3059
	32		Fuel tank capacity	L	60	60
	33	Transmission	Type		Machanical/hydraunic	Machanical/hydraunic
	34	Transmission	Stage FWD/RVS		1/1(2/2)/ 1/1	1/1(2/2)/ 1/1
	35	Operating pressure for attachment		Mpa	17.5	17.5
