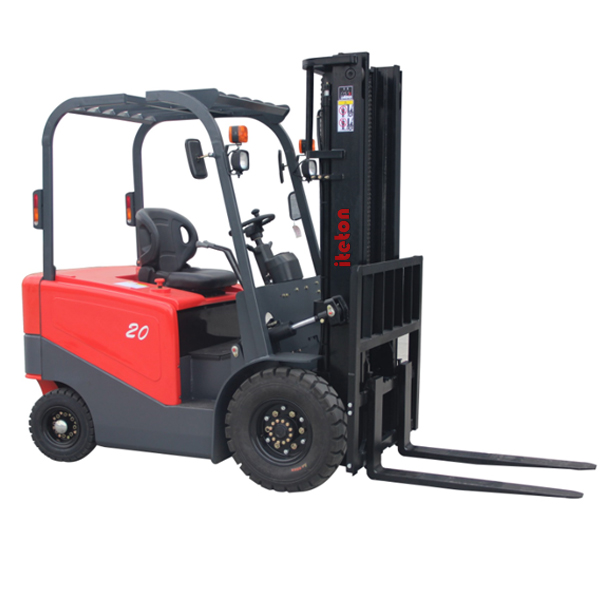

2 ton 2.5 ton electric forklift

Features

EF 20/25 2 ton 2.5 ton electric forklift

Power transmission system, overhead guard and truck frame all use dual suspension structure, which can weaken the vibration transferred from power system wheel, control lever and seat, thus making the operator feel more comfortable during operation

Master cylinder lowering with buffering system, shock absorber steering axle with low noise, all of seal kits imported from Japan (NOK), transmission and working system have low noise.

With regenerative brake in reversing mode and regular brake pedal use, truck can be braked after foot leaving the pedal, reduce operator efforts and improve the brake life.

The optional of third safety pedal to reduce the driving speed while stacking and steering application

Wide view mast, clear visibility

Low height access step with wide steel non slip plate for easy entry and exit.

Cowl-mounted hydraulic levers design offers big operation space.

Adjustable tilt steering column offers the most comfortable operator position

Seat with safety belt and arm rest ( The optional of Grammar or suspension type)

High-friction brake shoes are fee of asbestos

With reverse mirror, front work light and back work light group.

Description
Reviews (0)

Description

	1.1	Model		EF20	EF25
Characteristics	1.2	Power		Electric	Electric
	1.3	Operation type		seat	seat
	1.4	Capacity / Rated load	Q kg	2000	2500
	1.5	Load centre distance	C mm	500	500
	1.6	Wheel base	y mm	1500	1500
	2.1	Self weight (with battery)	kg	4100	4300
Tyres	3.1	Tyres type		Pneumatic/solid	Pneumatic/solid
	3.2	Tyre size(front)	inch	7.00-12-12PR	7.00-12-12PR
	3.3	Tyre size (rear)	inch	18*7-8-14PR	18*7-8-14PR
	3.4	Tyres, number front/rear		2X/2	2X/2
	3.5	Thread(rear/front)	b10/b11 mmm	960/950	960/950
Dimensions	4.1	Tilt of mast	α/β(^。）	6-12	6-12
	4.2	Stardard lift height	h3 mm	3000	3000
	4.3	Free lift	h2 mm	120	120
	4.4	Overall length	11 mm	2360	2360
	4.5	Overall width	b1 mm	1150	1150
	4.6	Mast lowered height	h1 mm	2065	2065
	4.7	Mast extended height	h4 mm	4100	4100
	4.8	Height of overhead guard	h6 mm	2220	2220
	4.9	Fork dimensions	l/e/s mmm	107010040	107010040
	4.10	Fork adjustment	b3 mm	200-1000	200-1000
	4.11	Traction pin height	mm	300	300
	4.12	Mast groud clearance / laden/unladen)	mm	100/130	100/130
	4.13	Ground clearance, centre of wheelbase(laden/unladen)	m2/min	125/130	125/130
	4.14	Seat height	h7 mm	1070	1070
	4.15	Turking radius	Wa mm	2100	2100
	4.16	Internal radius	mm	100	100
	4.17	Aisel width of pallet 1000*1200 crossway)	mm	3800	3800
Performance	5.1	Travel speed(Laden/unladen)	km/h	12.0/14	12.0/14
	5.2	Lifting speed(Laden/unladen)	m/s	280/450	280/450
	5.3	Lowering speed(Laden/unladen)	m/s	450/400	450/400
	5.4	Max gradeability(Laden/unladen)	%	10/15	10/15
Drive	6.1	Travel motor		XYQ-11-3EH	XYQ-11-3EH
	6.2	Travel motor power	kw	11	11
	6.3	Hydraulic motor		XYQD-10-2CH	XYQD-10-2CH
	6.4	Hydraulic motor	kw	10	10
	6.5	Controller		UK SEVCON	UK SEVCON
	6.6	Turning control
	6.7	Travel control		MOSFET	MOSFET
	6.8	Lifting control		MOSFET	MOSFET
	6.9	Oil tank	L	45	45
Battery	7.1	Battery		48v/600Ah	48v/700Ah
	7.2	Battery weight	KG	900	1030
	7.3	Battery dimension(LWH)	mm	1030500760	1030500760
Others	8.1	Stopping braking		Manual mechanical	Manual mechanical
	8.2	Service braking		Feet/hydraulic	Feet/hydraulic
	8.3	Operation pressure	kPa	175	175
	8.4	Noise level(7.5m)	dB(A)	70	70
