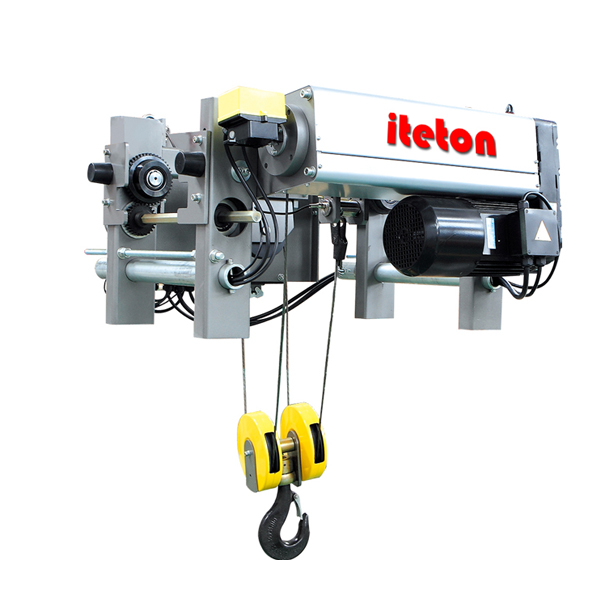

Low Headroom Electric Wire Rope Hoist

///Low Headroom Electric Wire Rope Hoist

Low Headroom Electric Wire Rope Hoist

Model : ITE-LHEH

  1. Traveling motor: NORD brand / Optinonal China Brand
  2. Lifting motor & reducer: ABM / Optional China Brand
  3. Inverter: YASKAWA / Optional China Brand
  4. Contactor: Schneider
  5. Terminal: Phoenix
  6. Speed: Lifting and traveling with inverter( variable speed)
  7. Overload limiter included
  8. FEM/ISO: 2M/M5
  9. Low noise
  10. High work efficiency
Category:

Description

Capacity kg Lifting height m Lifting speed m/min Lifting power kw Traveling speed m/min Traveling power kw Working system FEM/ISO Traveling working system H(mm) C(mm) B(mm) Weight kg
2000 6 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 210 556 150-300 341
9 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 210 556 150-300 360
12 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 210 556 150-300 380
15 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 210 556 150-300 401
18 5/0.8 3.2/0.45 5/20 0.37 3M M6 2M M5 210 556 150-300 425
3200 6 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 210 556 150-300 346
9 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 210 556 150-300 363
12 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 210 556 150-300 385
15 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 210 556 150-300 406
18 5/0.8 3.2/0.45 5/20 0.37 2M M5 2M M5 210 556 150-300 428
5000 6 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 260 596 200-350 413
9 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 260 596 200-350 435
12 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 260 596 200-350 462
15 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 260 596 200-350 489
18 5/0.8 6.1/1 5/20 0.37 2M M5 2M M5 260 596 200-350 516
6300 6 5/0.8 6.1/1 5/20 0.37 1Am M4 2M M5 260 596 200-350 413
9 5/0.8 6.1/1 5/20 0.37 1Am M4 2M M5 260 596 200-350 435
12 5/0.8 6.1/1 5/20 0.37 1Am M4 2M M5 260 596 200-350 462
15 5/0.8 6.1/1 5/20 0.37 1Am M4 2M M5 260 596 200-350 489
18 5/0.8 6.1/1 5/20 0.37 1Am M4 2M M5 260 596 200-350 516
8000 6 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 325 750 200-410 814
9 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 325 750 200-410 846
12 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 325 750 200-410 890
15 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 325 750 200-410 934
18 5/0.8 9.5/1.5 5/20 0.75 3M M6 2M M5 325 750 200-410 978
10000 6 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 325 750 200-410 814
9 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 325 750 200-410 846
12 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 325 750 200-410 890
15 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 325 750 200-410 934
18 5/0.8 9.5/1.5 5/20 0.75 2M M5 2M M5 325 750 200-410 978
12500 6 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 325 750 200-410 814
9 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 325 750 200-410 846
12 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 325 750 200-410 890
15 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 325 750 200-410 934
18 4/0.6 12.5/2 5/20 0.75 1Am M4 2M M5 325 750 200-410 978
16000 6 4/0.6 16/2.6 5/20 0.75×2 2M M5 2M M5 400 920 300-450 958
9 4/0.6 16/2.6 5/20 0.75×2 2M M5 2M M5 400 920 300-450 1042
12 4/0.6 16/2.6 5/20 0.75×2 2M M5 2M M5 400 920 300-450 1166
15 4/0.6 16/2.6 5/20 0.75×2 2M M5 2M M5 400 920 300-450 1266
18 4/0.6 16/2.6 5/20 0.75×2 2M M5 2M M5 400 920 300-450 1406
20000 6 4/0.6 16/2.6 5/20 0.75×2 1Am M4 2M M5 400 920 350-400 958
9 4/0.6 16/2.6 5/20 0.75×2 1Am M4 2M M5 400 920 350-400 1042
12 4/0.6 16/2.6 5/20 0.75×2 1Am M4 2M M5 400 920 350-400 1166
15 4/0.6 16/2.6 5/20 0.75×2 1Am M4 2M M5 400 920 350-400 1286
18 4/0.6 16/2.6 5/20 0.75×2 1Am M4 2M M5 400 920 350-400 1406
8000 20 8/1.3 12.5/2 5/20 0.75 2M M5 2M M5 325 750 200-410 1019
24 8/1.3 12.5/2 5/20 0.75 2M M5 2M M5 325 750 200-410 1060
28 8/1.3 12.5/2 5/20 0.75 2M M5 2M M5 325 750 200-410 1101
32 8/1.3 12.5/2 5/20 0.75 2M M5 2M M5 325 750 200-410 1142
36 8/1.3 12.5/2 5/20 0.75 2M M5 2M M5 325 750 200-410 1183
10000 20 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 325 750 200-410 1019
24 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 325 750 200-410 1060
28 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 325 750 200-410 1101
32 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 325 750 200-410 1142
36 8/1.3 16/2.6 5/20 0.75 2M M5 2M M5 325 750 200-410 1183
12500 20 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 325 750 200-410 1019
24 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 325 750 200-410 1060
28 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 325 750 200-410 1101
32 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 325 750 200-410 1142
36 6.3/1 16/2.6 5/20 0.75 1Am M4 2M M5 325 750 200-410 1183
