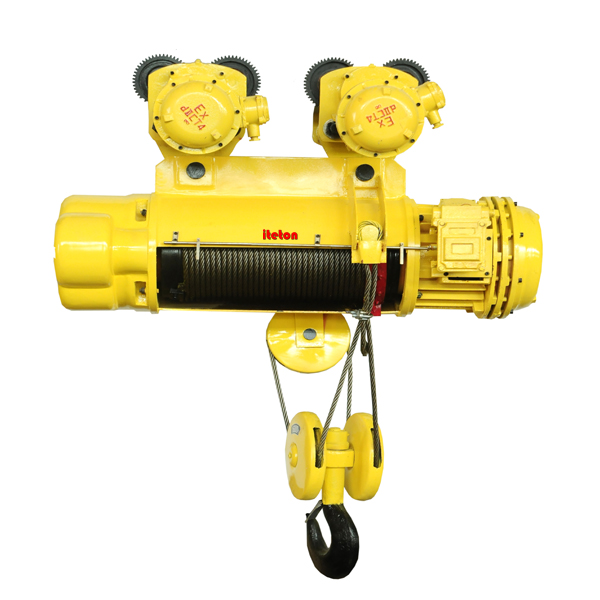

Explosion Proof Electric Wire Rope Hoist 5 ton

Model			HB(BCD)
Capacity	Ton		0.5			1						2						3						5
Lifting height	m		6	9	12	6	9	12	18	24	30	6	9	12	18	24	30	6	9	12	18	24	30	6	9	12	18	24	30
lifting speed	m/min		8(0.8)			8(0.8)						8(0.8)						8(0.8)						8(0.8)
Running speed	m/min		20			20						20						20						20
wire rope	Dia.of rope	mm	4.8			7.4						7.4						13						15.5
	Dia. of wire	mm	0.22			0.34						0.34						0.6						0.7
	structure form		D-6X37+1			D-6X37+1						D-6X37+1						D-6X37+1						D-6X37+1
I-beam track type(GB706-88)			16-28b			16-28b						20a-32c						25a-63c						25a-63c
Min.radis of ring shaped rail			1.5			1.5		2		3	4	2			2.5	3	4	2			2.5	3	4	2.5			3	4	5
lifting motor	model		BZD21-4			BZD22-4						BZD31-4						BZD32-4						BZD41-4
	capacity	kw	0.8			1.5						3						4.5						7.5
	R.P.M	r/min	1380			1380						1380						1380						1400
	phase		3			3						3						3						3
	Voltage	v	380			380						380						380						380
	currency	am.	2.4			4.3						7.6						11						18
	frequency		50			50						50						50						50
running motor	model		BZDY12-4			BZDY12-4						BZDY12-4						BZDY12-4						BZDY21-4
	capacity	kw	0.4			0.4						0.4						0.4						0.8
	R.P.M	r/min	1380			1380						1380						1380						1380
	Phase		3			3						3						3						3
	Voltage	v	380			380						380						380						380
	currency	am.	1.25			1.25						1.25						1.25						2.4
	frequency		50			50						50						50						50
NO. of connecting(No of times)			120			120						120						120						120
working grade & structure grade		JC%	25%			25%						25%						25%						25%
